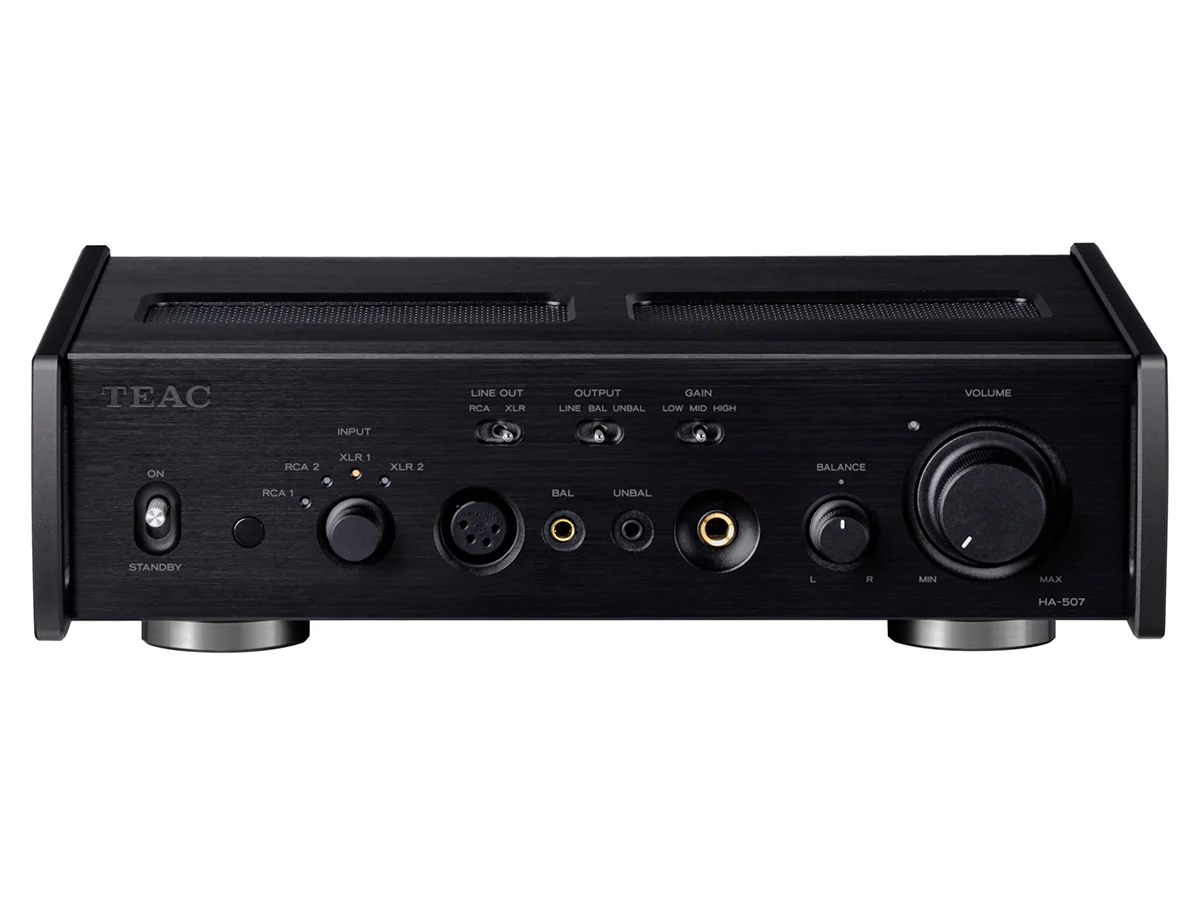

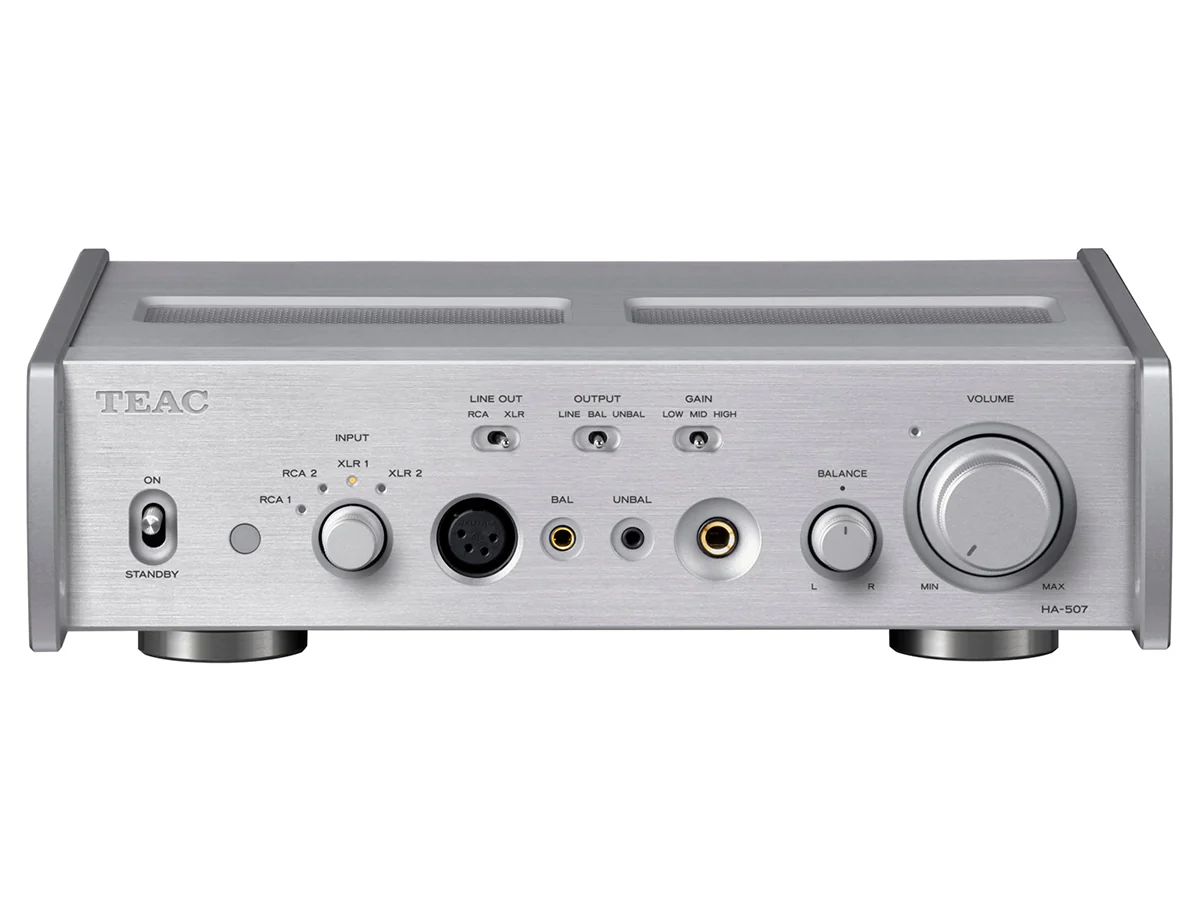

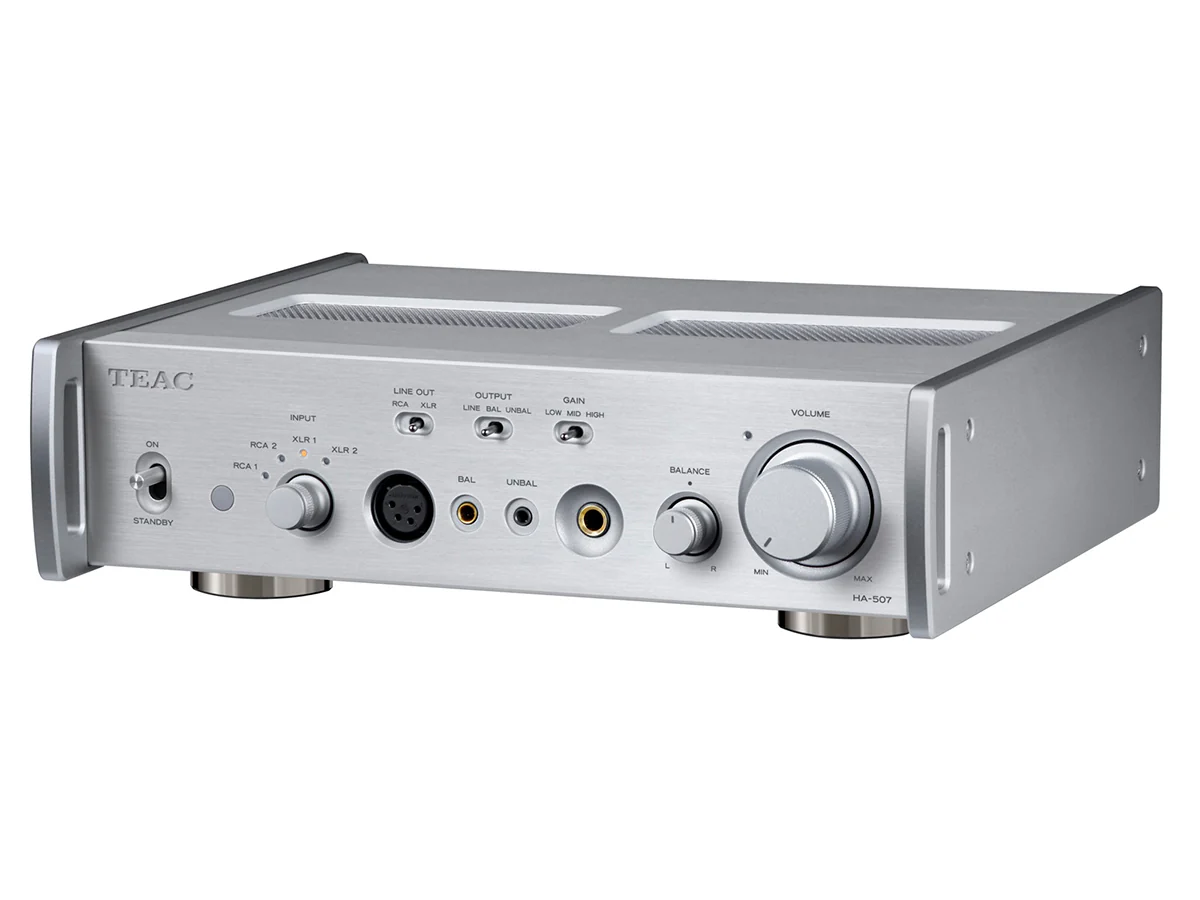

The HA-507 is a pure analog headphone amplifier/preamplifier that incorporates TEAC’s premium audio technologies to achieve the highest level of sound quality.
Equipped with an extensive power supply circuit, the HA-507 has exceptional headphone driving power and an extremely wide frequency response that cannot be imagined from its compact appearance. When connected to the TRDD 5 discrete DAC, model UD-507, you can create a special headphone playback system with separate digital and analog sections.
The HA-507 is a no-compromise headphone amplifier that can also be used as a pure analog preamplifier. When paired with a Reference 500 Series power amplifier, you can create a compact yet full-featured separate amplifier system that further enhances the quality of your loudspeaker listening experience.
As an authentic pure analog headphone amplifier
Combined with your favorite DAC or digital player, you can build a full-fledged headphone listening system.
As a compact premium preamplifier
Combined with the Reference 500 series power amplifier, a compact separate amplifier system with authentic sound quality can be realized. * Shown with the AP-505 which has been discontinued. A successor model is scheduled.
... And, as a “headphone power amplifier”
If you already have a higher quality preamplifier in your speaker system, you can pass through the HA-507's preamplifier and add it as a "headphone power amplifier".
Features
- High power, wide range, low distortion Class AB amplifier
- Fully balanced/dual mono configuration with four amplifier elements originally designed for speaker drive
- Exceptional headphone drive capability of 6,700mW + 6,700mW (32Ω) at balanced output
- Preamp pass-through function for use as a separate power amplifier for headphones
- Two balanced outputs: XLR 4-pin Ă— 1, 4.4mm Pentaconn Ă— 1
- Unbalanced outputs: 6.3mm Ă— 1, 3.5mm Ă— 1
- Switchable headphone output gain (high/mid/low)
- Premium compact preamplifier built on TEAC’s unparalleled excellence in audio design
- Fully balanced/dual mono configuration
- “TEAC-QVCS Advanced” with new super high precision, ladder resistor network
- Smooth, precise volume control in 0.25dB increments
- Lossless, long life FET input switching system without mechanical contacts
- “TEAC-HCLD 2 (High Current Line Driver 2)” provides fast and powerful external amplifier drive capability.

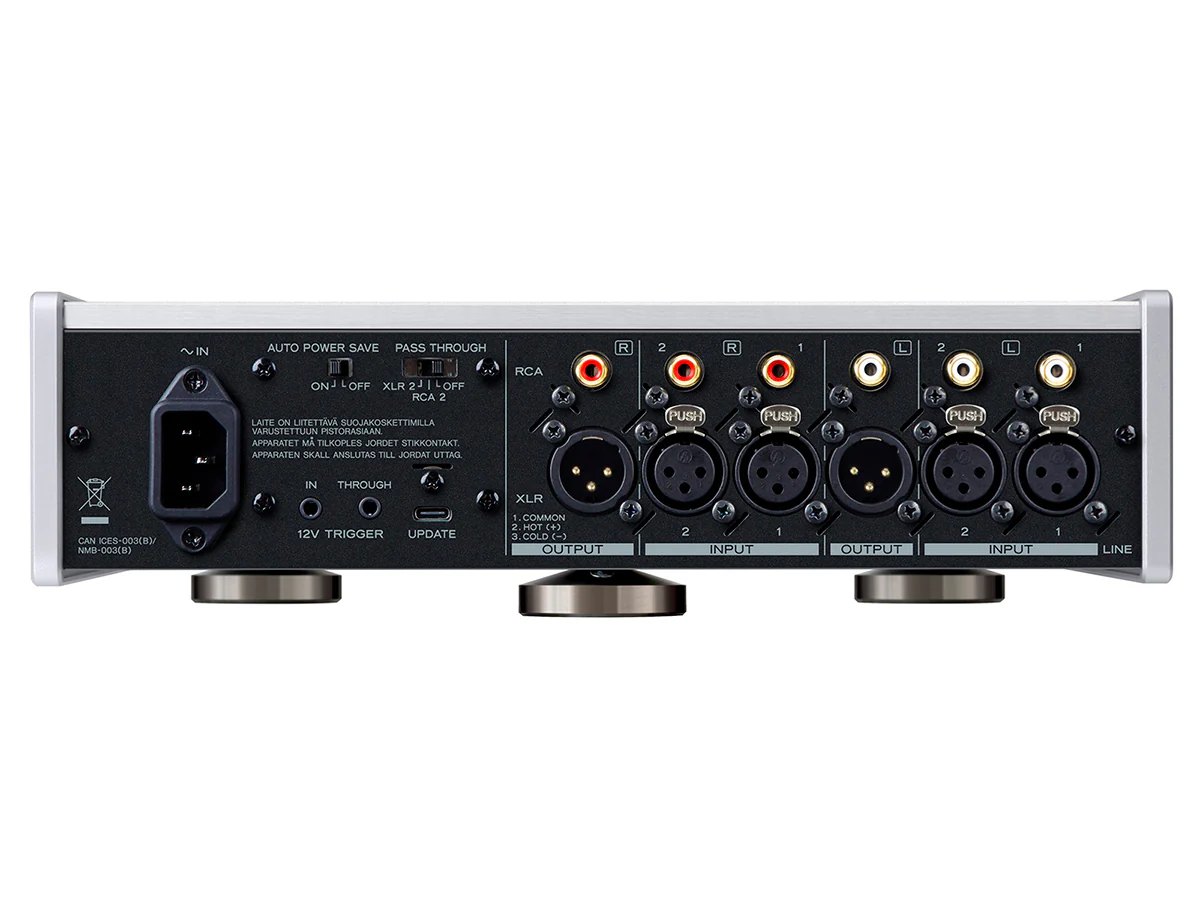

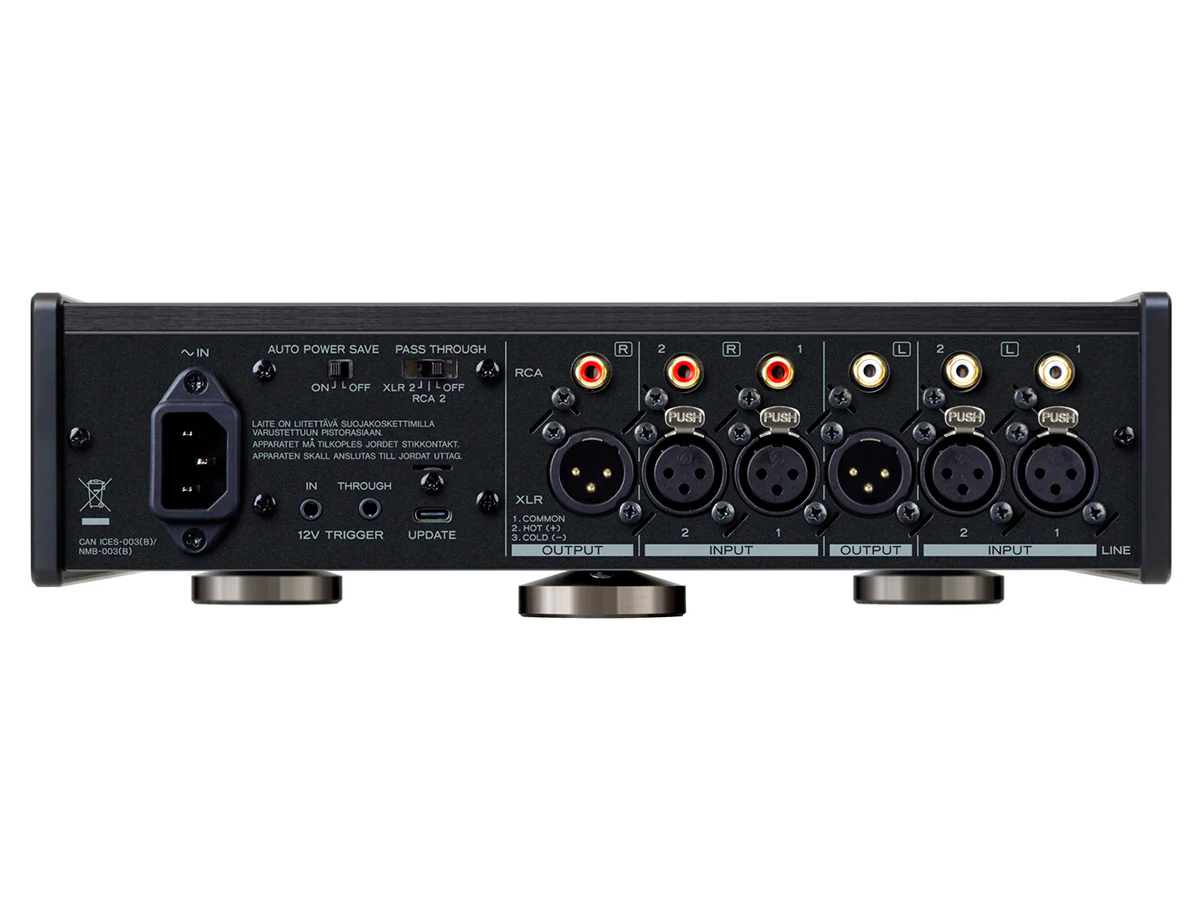

- Inputs: XLR Ă— 2, RCA Ă— 2
- Outputs: XLR Ă— 1, RCA Ă— 1
What's in the Box?
- TEAC HA-507 Headphone Amplifier/Preamplifier
- Power cord Ă— 1

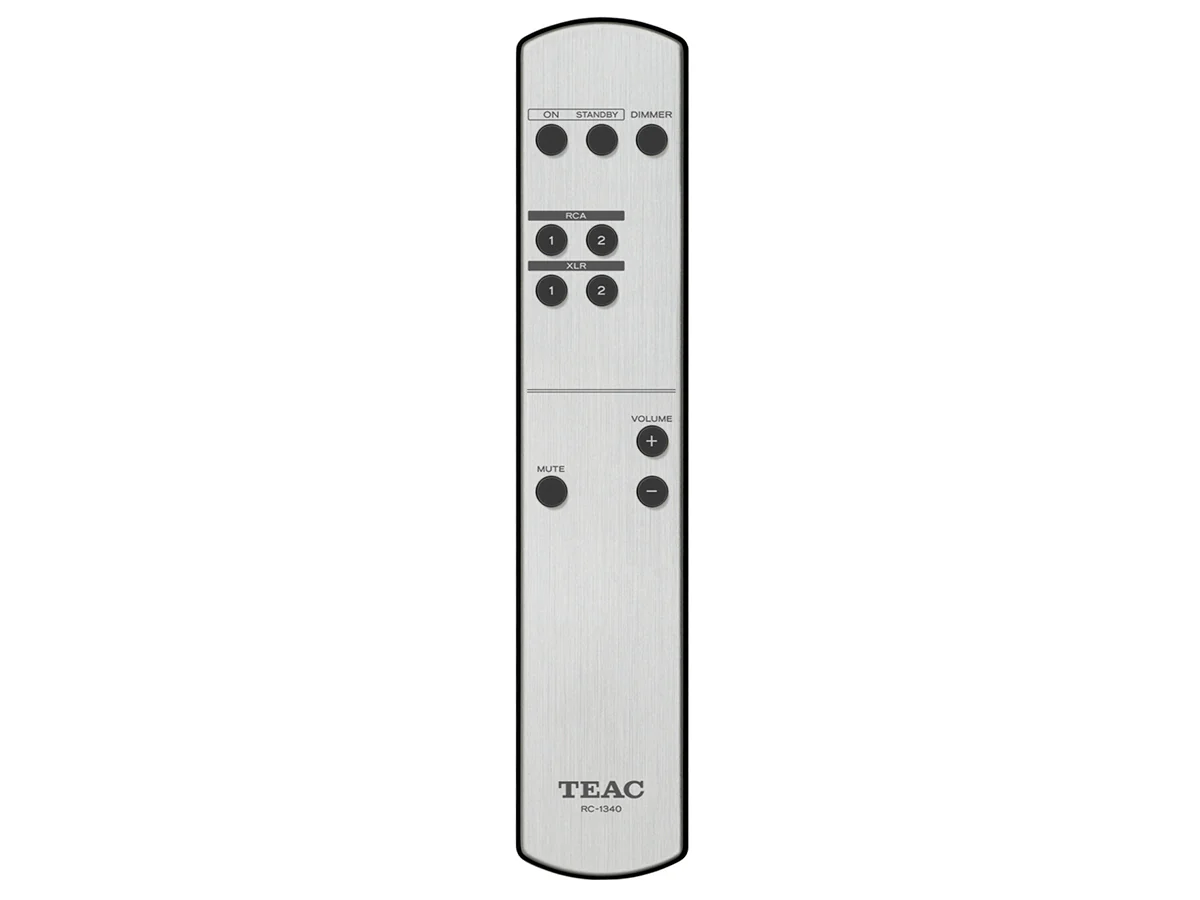

- Remote control (RC-1340) Ă— 1
- Batteries for remote control (AAA) Ă— 2
- Foot pads Ă— 3
- Owner’s manual (this document, including warranty) × 1
