Network DAC Preamplifier N-05XE

Condensing the appeal of an ultra-high-end system, this minimal and versatile, best-selling Esoteric system has evolved into the "XE" model, offering even richer musicality.

With the Network DAC Preamplifier N-05XE and Class A Power Amplifier S-05XE, all that remains is to choose the perfect speakers for your system.

The N-05XE network DAC preamplifier features next-generation discrete DAC and network engine technologies for even higher sound quality.

Designed to deliver the highest sound quality in the smallest possible system configuration, the N-05XE features an optical network-compatible G4 network engine and a next-generation G2 discrete DAC. It also has a dual balanced preamplifier derived directly from the Grandioso models, along with a high-quality built-in headphone amplifier.

The "XE" model retains its acclaimed functionality while meticulously refining every circuit component through a newly optimized design. Enjoy the refined Esoteric signature sound to your heart's content.

N-05XE System Configuration

D/A Converter: Equipped with a wide range of digital inputs
Network Streamer: Designed for streaming and music file playback
Dual-Mono, Dual Balanced Preamplifier
Dual-Mono, Parallel Single-Ended Headphone Amplifier
Fully Dual-Mono Construction: All analog and power supply circuits are completely L/R independent

Master Sound Discrete DAC G2

Next Generation “G2” DAC: With richer musicality, incorporating the Grandioso N1 technologies
Highly Advanced Multilevel ΔΣ D/A Converter: Powered by 64-bit/512Fs ΔΣ modulator
FPGA-Based Discrete Circuit Configuration: Without using an off-the-shelf DAC IC
Two Independent FPGA Digital Processing Algorithms: Optimized separately for PCM and DSD formats
Low-Noise New Register Network: Provides cleaner imaging and lower noise
High Precision MELF Resistor Elements: Ensures ultra-high D to A conversion accuracy
Fully Dual-Mono Configuration: Left/right independent analog and power supply circuits
“Master Sound Discrete Clock for Digital Player”: Esoteric’s proprietary high-precision clock circuit

ESOTERIC Network Engine G4

Next Generation Network Streaming Engine: Supports optical network connections via SFP port
Dedicated Large Linear Power Supply: Contributes to smooth, vinyl-like, and richly detailed sound
Native DSD 22.5 MHz Playback Support
Music Server Function: Supports connection of up to two USB drives
Wide Range of Supported File Formats: DSF, DSDIFF, FLAC, ALAC, WAV, AIFF, MQA, MP3, AAC
Esoteric Sound Stream App: Provides extremely comfortable operation on smartphone/tablet
OpenHome Compliant: Can be controlled using compatible OpenHome applications
Support for Multiple Streaming Services: Tidal Connect, Qobuz Connect, Roon, Spotify Connect, QQ Music

Dual-Mono, Dual Balanced Preamplifier

High-Fidelity Dual-Mono, Dual Balanced Circuit: Consists of 8 circuits (L/R, hot/cold independent)
Dedicated Attenuator Power Supply: Contributes to pure volume control
HCLD High-Current Buffer Amplifier: Powerfully drives downstream equipment with no sound quality difference regardless of preamp output, line output, or headphone output
ES-Link Analog: Esoteric’s proprietary current signal link with amplifier, provides super authentic sound
ES-Link Analog input ×1

Dual-Mono, Parallel Single-Ended Headphone Amplifier

Completely New Circuit Design: Developed for even higher sound quality
Dual-Mono Parallel Single-Ended Amplification: Provides excellent drive capability and control
1,200 mW + 1,200 mW Output (32 Ω Load)
4-Pin XLR and ¼ (6.3mm) Stereo Phone Headphone Outputs

Other Features

Front USB Type-C Port: Functions as a DAC input for smartphones and DAPs
ES-Link (XLR) Input: Provides digital connectivity to Esoteric SACD transport models
10 MHz Clock Input: Enables connection to the G-05 external master clock for further sound quality enhancement
Bluetooth® Receiver: Supports various high definition codecs; LDAC, LHDC, Qualcomm®aptX ™ HD audio, Qualcomm®aptX ™ audio, AAC, SBC
Fixed Line Output Mode / Signal Pass-Through Output Mode
High-Rigidity Chassis Construction: Optimized for effective vibration control
Semi-Floating Top Panel: Enhances sonic openness and spatial expression
Patented Pinpoint Isolation Feet: Deliver focused imaging and an open soundstage
Proudly Made in Tokyo
: New features of the N-05XE

Master Sound Discrete DAC G2

The Esoteric Master Sound Discrete DAC G2 is a fully in-house designed, FPGA-based, multi-level ΔΣ (delta-sigma) D/A converter built with meticulously selected discrete components. This unique architecture's ultimate goal is to effortlessly reproduce music's true dynamics and power, surpassing the limitations of conventional DAC IC chips. Its large-scale circuit design comprises 16 elements per channel, with all key components configured in complete independence.

In the XE model, the new G2 DAC features a completely redesigned resistor network—the first stage of the analog domain, achieving even purer signal processing. This breathtakingly powerful, dynamic, and musical architecture delivers an uncompromised, pure listening experience.

New Low-Noise Register Network

In a DAC, the resistor network is a critical circuit that converts the digital signal generated by the FPGA into an analog signal through precision resistor elements.

For the new G2 version of the DAC, Esoteric applied development achievements from our flagship network streamer, the Grandioso N1. This approach simplified and optimized the circuit responsible for switching the resistor elements on and off. In addition, capacitors placed in proximity to the resistor network improve current supply stability, enabling the generation of purer analog signals with significantly reduced noise.

Advanced Digital Processing Capabilities

The G2 DAC supports the latest formats, including native DSD 22.5 MHz playback. Independent FPGA-based digital processing algorithms, optimized separately for DSD and PCM formats, enable D/A conversion that maximizes the advantages of each format.

High-Precision MELF Resistors

Critical resistor elements within the DAC circuit employ high-precision MELF resistors to enhance computational accuracy. Additionally, the circuit’s carefully selected discrete components contribute to sound reproduction characterized by vivid live presence, superb dynamics, and an organic, natural texture.

Mater Sound Discrete Clock for Digital Player

The clock circuit, which is critical for high-quality digital playback, now features Esoteric's proprietary "Master Sound Discrete Clock for Digital Player." With its unique circuit design and carefully selected discrete components, the clock circuit achieves high sound quality, reflecting Esoteric's philosophy down to the finest detail— an approach that cannot be realized with generic clock modules.

The 4th Generation "Esoteric Network Engine G4"

The N-05XE features the fourth-generation "Esoteric Network Engine G4," which incorporates an SFP port for optical network connectivity. Equipped with large-capacity RAM and a powerful CPU, it delivers advanced processing performance. The network power supply section employs a large linear power supply that is completely separated from the audio power supply. Each network component is powered directly via its own independent power line, separated from the transformer windings. By eliminating noise-generating switching elements, the N-05XE achieves a smooth, vinyl-like sound with rich detail and natural musical flow.

The 4th Generation "Esoteric Network Engine G4"

The N-05XE features the fourth-generation "Esoteric Network Engine G4," which incorporates an SFP port for optical network connectivity. Equipped with large-capacity RAM and a powerful CPU, it delivers advanced processing performance. The network power supply section employs a large linear power supply that is completely separated from the audio power supply. Each network component is powered directly via its own independent power line, separated from the transformer windings. By eliminating noise-generating switching elements, the N-05XE achieves a smooth, vinyl-like sound with rich detail and natural musical flow.

SFP Port

The Esoteric Network Engine G4 is equipped with a built-in network switch function and has two network interfaces: an Ethernet RJ45 connector and an SFP port.

By connecting the N-05XE to an external network switch using an SFP module and fiber-optic cable, the signal can be isolated from network-borne noise, resulting in unparalleled playback purity. For maximum flexibility, both the RJ45 and SFP ports can be used simultaneously, tailoring the setup to your preferences and requirements.

Music Server Function

The N-05XE is equipped with USB ports (USB-A ×1, USB-C ×1) and can function as a music server / NAS by connecting up to two USB storage devices, such as flash drives or HDD/SSD units.

Esoteric Sound Stream – Intuitive Control Meets Audio Quality

The Esoteric Sound Stream app, available for both Apple iOS and Android devices, is designed to combine exceptional sound quality with effortless usability. Tailored for smartphones and tablets, this innovative app allows users to easily browse, manage, and customize their music playback experience with just a few taps.

With its intuitive interface, creating and managing playlists becomes seamless. All screens are thoughtfully designed for straightforward navigation, ensuring that music libraries and playlists are easily accessible to users of any experience level. At the same time, the app offers a suite of advanced features to satisfy even the most seasoned audiophiles.

Compatible with a Wide Selection of Audio Codecs and Streaming Services

Esoteric has partnered with a wide array of streaming services and audio codec providers, and preparations are currently underway to provide compatibility with newer services.

* Information on newly supported services will be released on Esoteric’s website.

* Please note that regional restrictions may be applied to some services.

TIDAL / TIDAL Connect

Begin your encounters with new music through TIDAL, a high-end music streaming service that has officially partnered with Esoteric. TIDAL’s lossless music distribution service operates on a fixed rate basis. Offering instant access to its enormous sound library, TIDAL enables users to enjoy their favorite music online with excellent sound quality. Esoteric also supports TIDAL Connect playback.

Learn more here: TIDAL

Qobuz / Qobuz Connect

Founded in 2007 and a pioneer of high-quality sound, Qobuz is the French music streaming and download platform for those who want to live and share their passion for music. Available in 26 countries (as of 2024) around the world, in Europe, the USA, Canada, Australia, New Zealand, Latin America, and Japan, Qobuz offers an exceptional range of exclusive editorial content written by a team of experts. With its catalog of more than 100 million tracks, Qobuz also has the richest choice of high-resolution (Hi-Res) titles. Esoteric also supports Qobuz Connect playback.

Learn more here: Qobuz

Roon Ready

Roon is the most engaging, enjoyable way to browse your music. Being Roon Ready means that Esoteric network players transparently discover and connect to Roon, with no network configuration, with bit-perfect delivery of audio to your DAC. Together, Roon and Esoteric deliver the power, flexibility, and performance benefits of networked audio, with the easiest setup and highest reliability available.

Learn more here: Roon Labs

RAAT (Roon Advanced Audio Transport) Dedicated Mode

The N-05XE is equipped with a dedicated RAAT mode that reduces the CPU processing load by disabling all network functions except those required for RAAT, thereby improving playback quality when using Roon.

Spotify

Spotify is an online music streaming service delivering over 40 million songs. Two types of services are provided: a basic service called “Spotify Free” for free, and a on-demand and high-quality sound subscription service called “Spotify Premium” at a flat rate.

Learn more here: Spotify

QQ Music

QQMusic is the largest music streaming service in mainland China and is a joint venture between Tencent and Spotify. It supports high-resolution music streaming if you are a paid VIP tier user. With support for QPlay, you can choose Esoteric as a playback device from within the QQMusic App.

Learn more here: QQ Music

MQA

MQA is an award-winning technology that delivers master quality audio in a file that's small enough to stream or download. Using pioneering scientific research into how people hear, MQA captures and authenticates the sound of the original studio performance.

Learn more here: MQA

Dual Balanced Preamplifier Parallel Single-Ended Headphone Amplifier

The Dual-Mono, Dual Balanced Preamplifier at the Heart of the System

The preamplifier forms the core of the system and defines the essence of its sound. The Grandioso's high fidelity and musical expression embody Esoteric's philosophy and technology. These qualities have been passed down to the N-05XE, which inherits its lineage. The acclaimed dual mono, dual balanced configuration delivers dynamic yet delicate sound, capturing the performer's sensibility.

A Total of 8 Circuits for L/R, Hot/Cold

The N-05XE uses an attenuator circuit with a high-fidelity, dual-mono, dual-balanced configuration. This configuration comprises eight independent circuits that separately handle left and right channels, as well as positive and negative signal paths. This configuration achieves clear sound quality with excellent channel separation and phase accuracy. In the XE model, the attenuator's power supply section is completely independent from the other power circuits, which further refines the purity of reproduction.

High-Precision Ball Bearing Volume Control Knob

Providing ultra-smooth analog operating feel, the N-05XE’s volume control utilizes the same Ball-Bearing support mechanism used in Esoteric’s flagship Grandioso line. The volume knob itself is precision-machined from solid aluminum, ensuring exceptional tactile quality and mechanical precision.

Unique Esoteric-HCLD Output Buffer Circuitry

The N-05XE’s Esoteric-HCLD (High Current Line Driver) circuit was developed in pursuit of ultimate current transmission capacity and speed, two factors that are critical to achieving uncompromised analog output performance. The buffer’s high-speed element features an exceptional slew rate, or response speed, of 2,000 V/μs, enabling the reproduction of musical dynamics with breathtaking realism.

ES-Link Analog – Esoteric's Proprietary Current Signal Transmission Technology

The N-05XE features Esoteric's "ES-Link Analog" input/output transmission method. This method leverages the high performance of the HCLD buffer circuit, which is renowned for its powerful current supply capability. ES-Link Analog minimizes the influence of signal path impedance, enabling pure, powerful signal transmission and playback brimming with realism, as if you were directly monitoring from an analog console in a recording studio.

In the XE model, a newly added ES-Link Analog input allows direct connection to compatible Esoteric components such as the K-05XD, an integrated Super Audio CD player with DAC functionality and the E-02, a dedicated high-performance phono preamplifier.

Dual-Mono Parallel Single-Ended Headphone Amplifier

Experience high-end headphone listening in your own space. The N-05XE features a newly developed dual-mono, parallel single-ended headphone amplifier. Esoteric’s accumulated expertise in analog amplifier design is brought together in this circuit, delivering exceptional sound quality for serious headphone listening.

Evolved for an Even More Open Sound

The circuit is engineered to eliminate differences in sound quality between speaker and headphone playback. This is achieved by employing the HCLD line-stage preamplifier, renowned for its high current output, as the headphone amplifier itself. The dual-mono architecture incorporates independent left and right power supply circuits.

During headphone operation, the two amplifier circuits switch to parallel single-ended operation, resulting in sound with even greater openness than previous models. The amplifier is equipped with two output formats: a 4-Pin XLR and a ¼ (6.3mm) stereo phone headphone output. With a high output power of 1,200 mW per channel (32 Ω load), it drives high-end headphones with ample authority, control, and musical vitality, delivering uncompromising performance and heightened musical expressiveness.

Flexible for a Wide Range of Uses

The N-05XE is a highly versatile high-end component that has been meticulously finished without any compromise, providing top-tier audio performance across a wide range of applications. When switched to fixed line level output, the N-05XD can be connected to an external preamp for operation as a standalone digital source or DAC. It also has a convenient pass-through output for use as a front-channel speaker preamp for an AV receiver. The XE model can additionally function as a DAC input, allowing direct connection of smartphones and DAPs.

The Dual-Mono, Dual Balanced Preamplifier at the Heart of the System

The preamplifier forms the core of the system and defines the essence of its sound. The Grandioso's high fidelity and musical expression embody Esoteric's philosophy and technology. These qualities have been passed down to the N-05XE, which inherits its lineage. The acclaimed dual mono, dual balanced configuration delivers dynamic yet delicate sound, capturing the performer's sensibility.

A Total of 8 Circuits for L/R, Hot/Cold

The N-05XE uses an attenuator circuit with a high-fidelity, dual-mono, dual-balanced configuration. This configuration comprises eight independent circuits that separately handle left and right channels, as well as positive and negative signal paths. This configuration achieves clear sound quality with excellent channel separation and phase accuracy. In the XE model, the attenuator's power supply section is completely independent from the other power circuits, which further refines the purity of reproduction.

High-Precision Ball Bearing Volume Control Knob

Providing ultra-smooth analog operating feel, the N-05XE’s volume control utilizes the same Ball-Bearing support mechanism used in Esoteric’s flagship Grandioso line. The volume knob itself is precision-machined from solid aluminum, ensuring exceptional tactile quality and mechanical precision.

Unique Esoteric-HCLD Output Buffer Circuitry

The N-05XE’s Esoteric-HCLD (High Current Line Driver) circuit was developed in pursuit of ultimate current transmission capacity and speed, two factors that are critical to achieving uncompromised analog output performance. The buffer’s high-speed element features an exceptional slew rate, or response speed, of 2,000 V/μs, enabling the reproduction of musical dynamics with breathtaking realism.

ES-Link Analog – Esoteric's Proprietary Current Signal Transmission Technology

The N-05XE features Esoteric's "ES-Link Analog" input/output transmission method. This method leverages the high performance of the HCLD buffer circuit, which is renowned for its powerful current supply capability. ES-Link Analog minimizes the influence of signal path impedance, enabling pure, powerful signal transmission and playback brimming with realism, as if you were directly monitoring from an analog console in a recording studio.

In the XE model, a newly added ES-Link Analog input allows direct connection to compatible Esoteric components such as the K-05XD, an integrated Super Audio CD player with DAC functionality and the E-02, a dedicated high-performance phono preamplifier.

Dual-Mono Parallel Single-Ended Headphone Amplifier

Experience high-end headphone listening in your own space. The N-05XE features a newly developed dual-mono, parallel single-ended headphone amplifier. Esoteric’s accumulated expertise in analog amplifier design is brought together in this circuit, delivering exceptional sound quality for serious headphone listening.

Evolved for an Even More Open Sound

The circuit is engineered to eliminate differences in sound quality between speaker and headphone playback. This is achieved by employing the HCLD line-stage preamplifier, renowned for its high current output, as the headphone amplifier itself. The dual-mono architecture incorporates independent left and right power supply circuits.

During headphone operation, the two amplifier circuits switch to parallel single-ended operation, resulting in sound with even greater openness than previous models. The amplifier is equipped with two output formats: a 4-Pin XLR and a ¼ (6.3mm) stereo phone headphone output. With a high output power of 1,200 mW per channel (32 Ω load), it drives high-end headphones with ample authority, control, and musical vitality, delivering uncompromising performance and heightened musical expressiveness.

Flexible for a Wide Range of Uses

The N-05XE is a highly versatile high-end component that has been meticulously finished without any compromise, providing top-tier audio performance across a wide range of applications. When switched to fixed line level output, the N-05XD can be connected to an external preamp for operation as a standalone digital source or DAC. It also has a convenient pass-through output for use as a front-channel speaker preamp for an AV receiver. The XE model can additionally function as a DAC input, allowing direct connection of smartphones and DAPs.

SACD Transport Connectivity

The N-05XE is equipped with Esoteric’s proprietary ES-Link digital input, enabling direct connection to Esoteric Super Audio CD transport models via a single XLR cable.

Built-in Bluetooth® Receiver

The N-05XE features a built-in Bluetooth® receiver supporting high-quality audio codecs, including LDAC, LHDC, Qualcomm® aptX™ HD audio, Qualcomm® aptX™ audio, AAC and SBC. This enables high-fidelity wireless playback from smartphones and other compatible devices. The N-05XE also supports multipoint connectivity, allowing simultaneous connection to multiple devices for seamless switching.

Clock Sync Function

The N-05XE is equipped with a high-precision 10 MHz master clock input. When used in combination with the external G-05 master clock generator, it enables further enhancement of overall sound quality.

Chassis Construction that Combines Rigidity and Flexibility for Resonance Control

The N-05XE features a semi-floating top panel that contributes to an open and spacious sound. The bottom chassis incorporates precision laser-cut slits around the power transformer mount for effective resonance control. Unwanted vibrations are efficiently dissipated externally through Esoteric’s patented Pinpoint isolation feet (patent nos. JP 4075477, JP 3778108, and JP 7413773).

Remote Controller with Easy-Operation Buttons on Both Sides

The RC-1339 remote controller features an ergonomically designed aluminum body that fits naturally in the hand, with buttons positioned on both sides of the unit for intuitive and effortless operation from the comfort of the listening position.

In addition to providing straightforward control of preamplifier functions and network playback, this remote controller can also be used to operate compatible Esoteric Super Audio CD players and transports.

Esoteric

Price

Collections

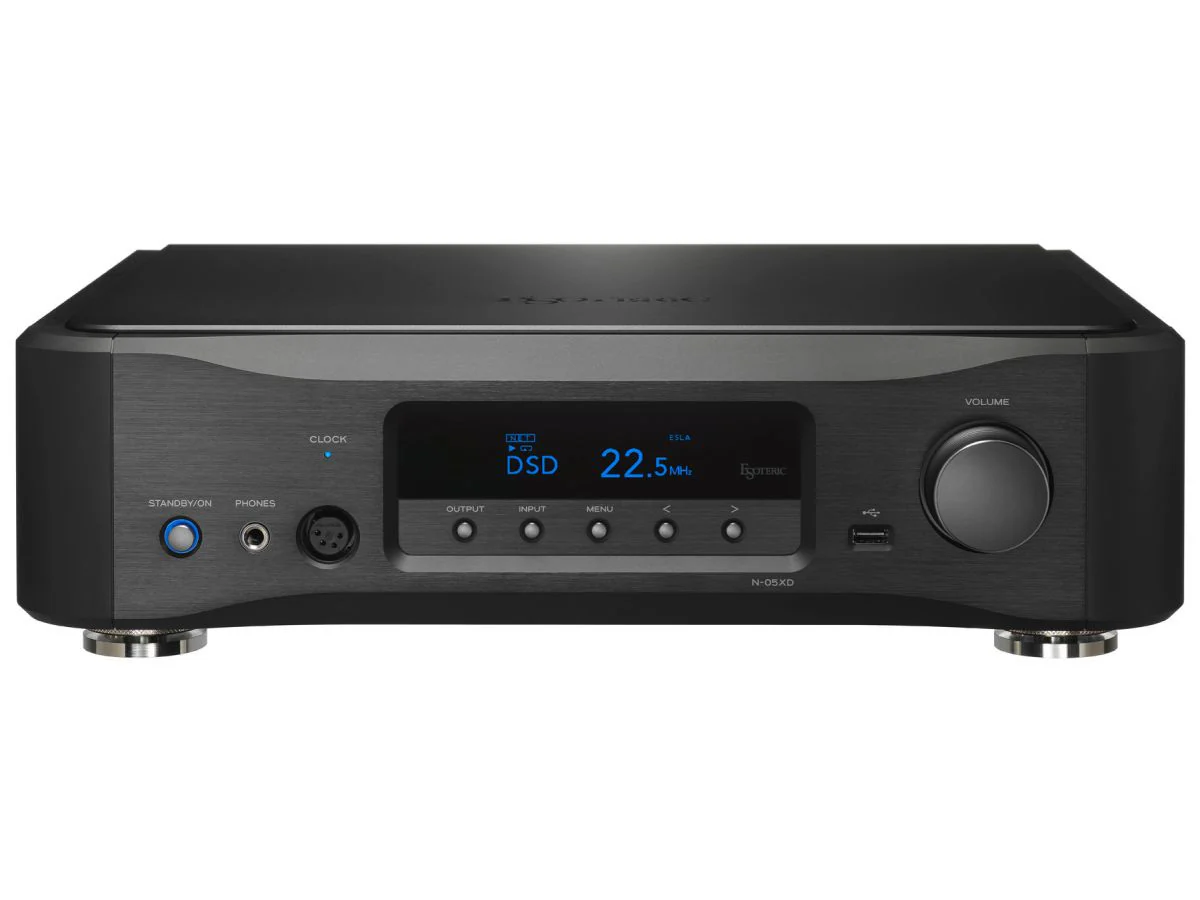

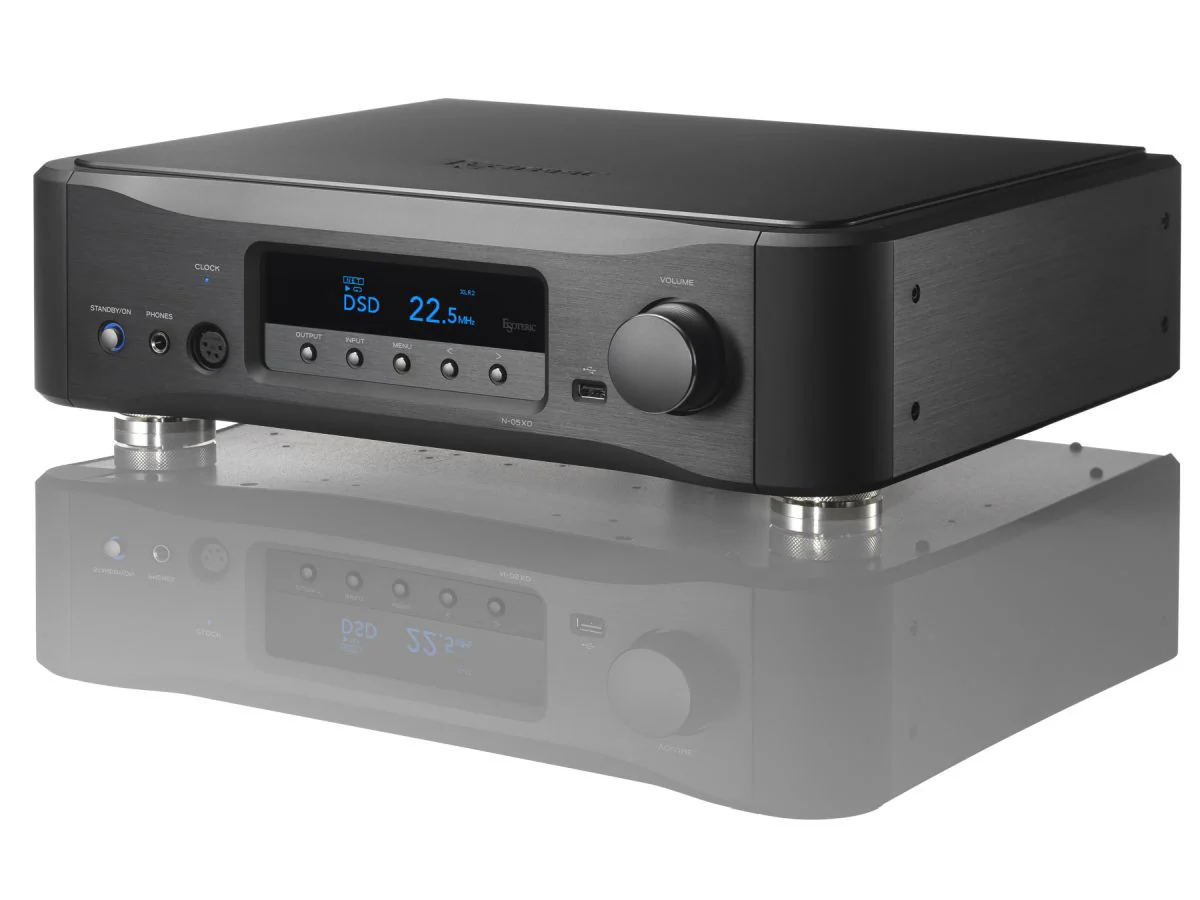

N-05XE Headphone Amplifier, USB DAC and Network Player

G-05 Master Clock

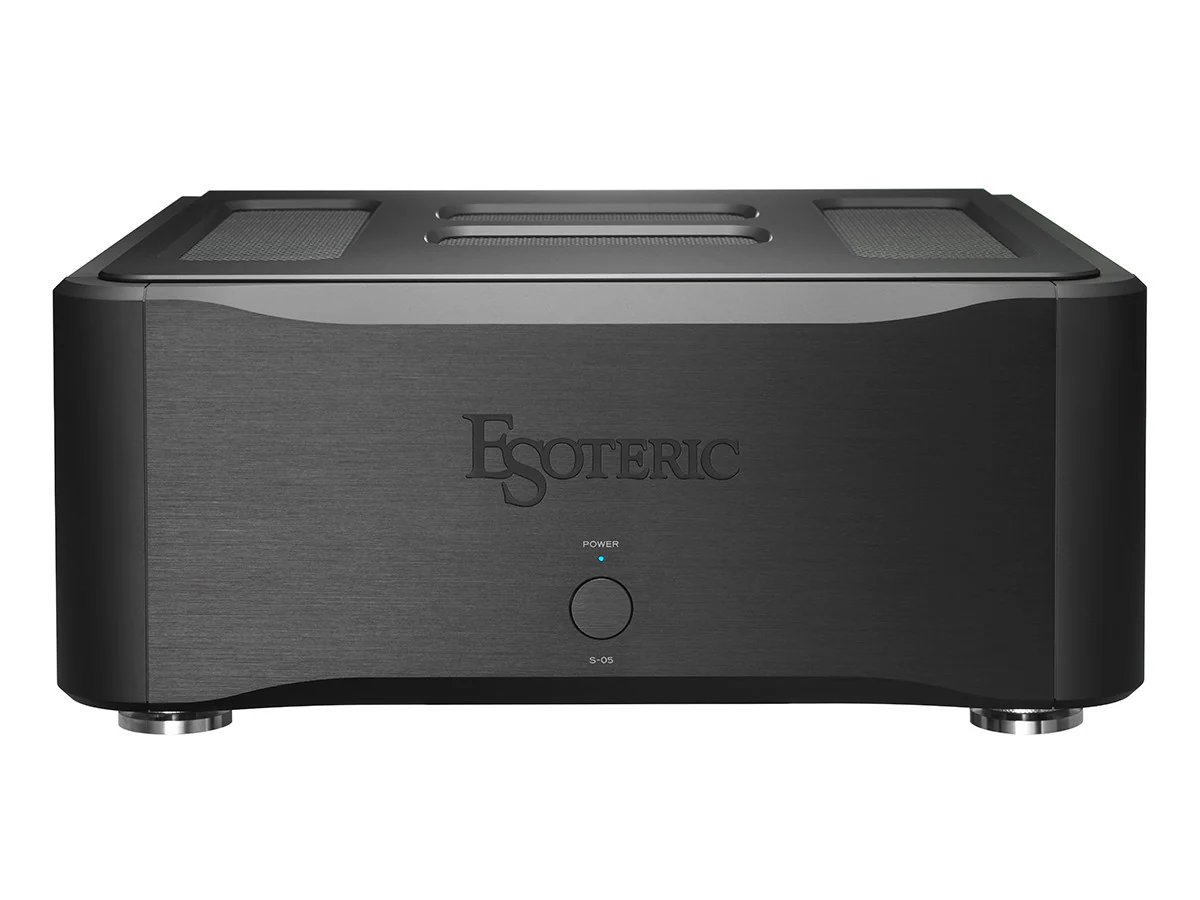

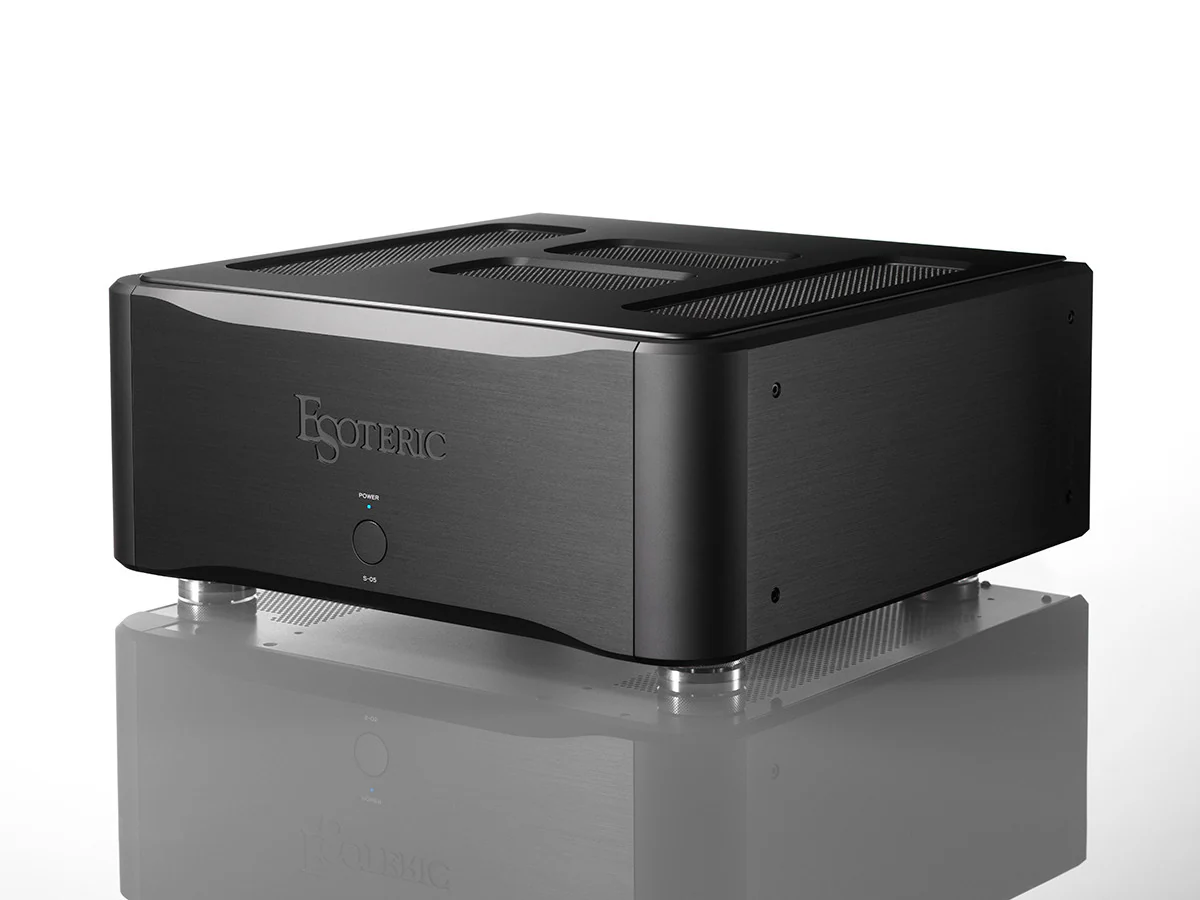

S-05XE – Reference Class A Amplifier

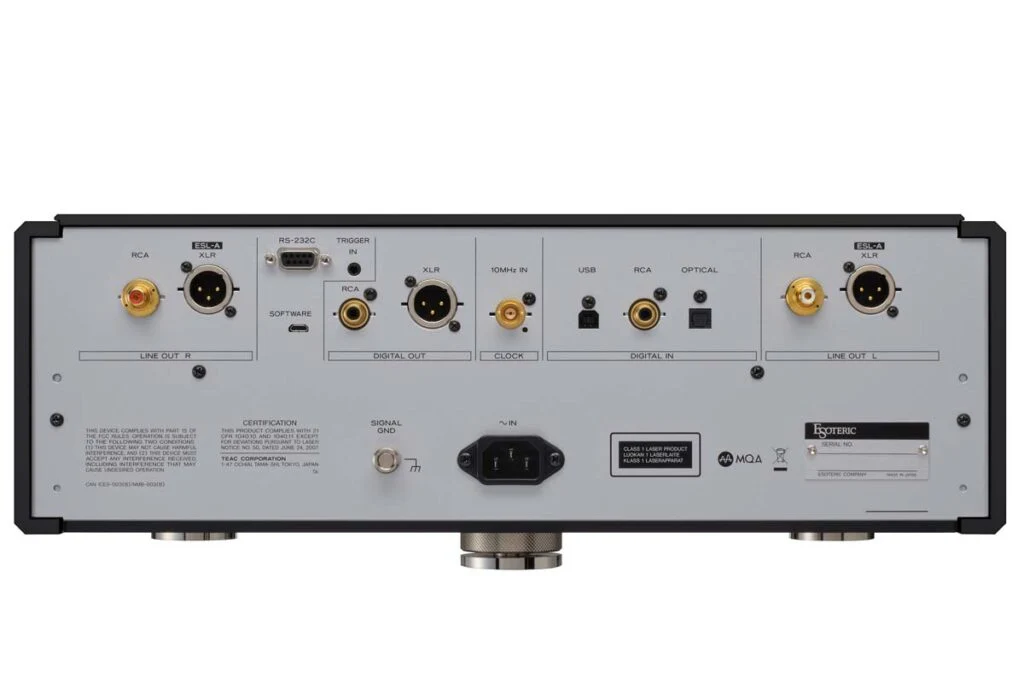

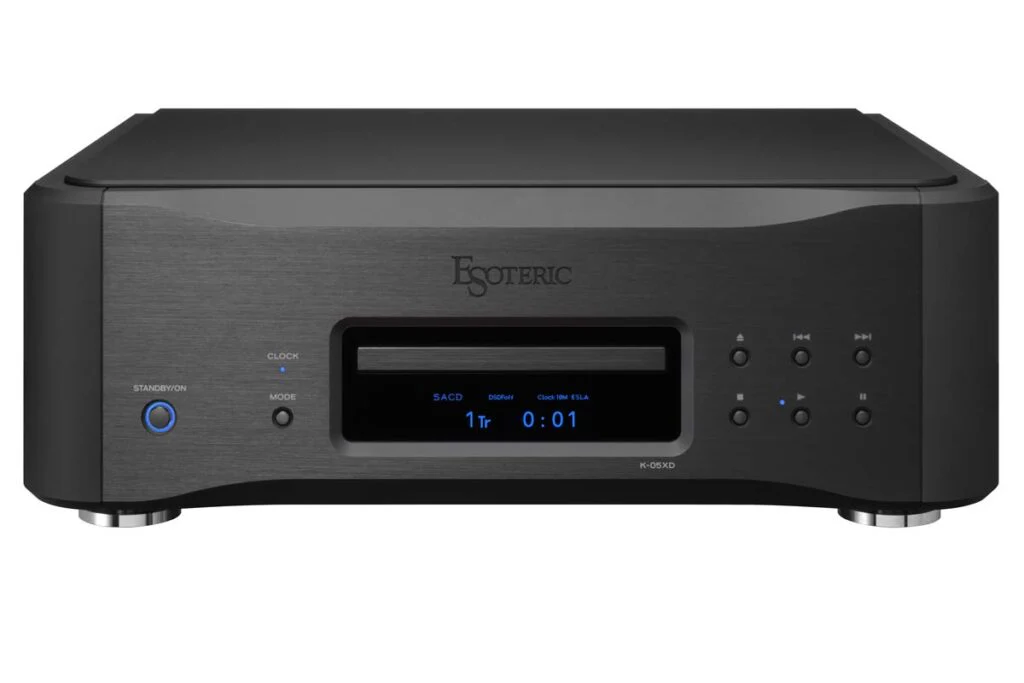

K-05XD Super Audio CD/CD Player
